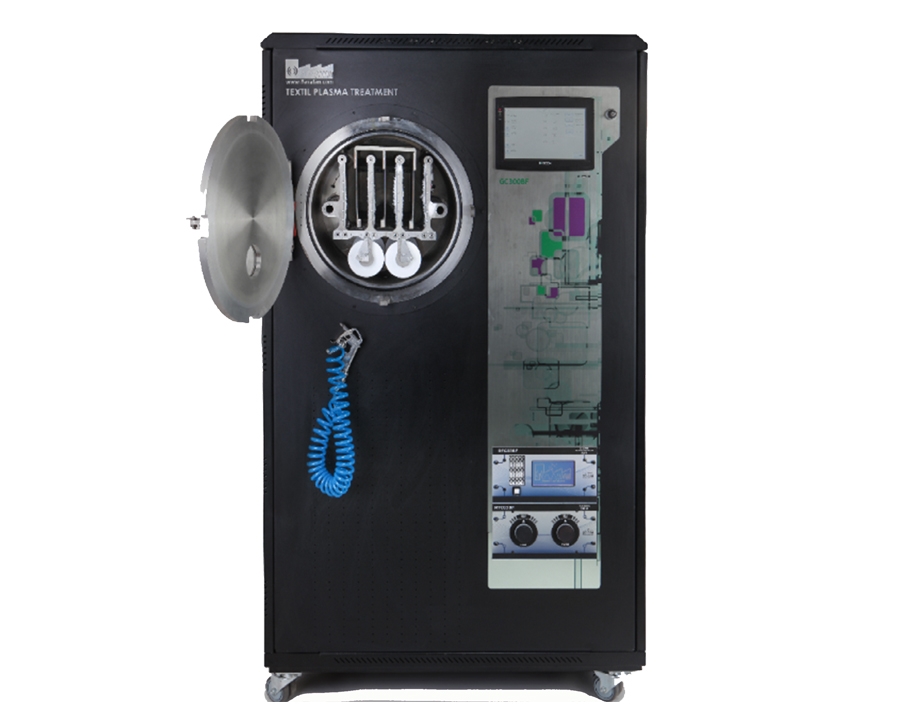

Laboratory Plasma Treatment System

This equipment is used to create carious characteristics in fabrics and two-dimensional and three-dimensional objects.
It is possible to adjust the different operational parameters in manual and automatic modes and control the system performance via the display and control panel. Parameters such as working pressure, amount of injected gas and monomer, and different timings can be adjusted and monitored in both modes.
Special applications of this device include creating certain characteristics such as hydrophilicity, hydrophobicity, stain-proof and grease-proof, and slow burning characteristics in cloth, shoes, garments, electronic boards, and various polymeric and composite substrates.


The components of this device include the following:

  1. Vacuum enclosure
  2. Pump, fittings, gages and relief valves
  3. Plasma power supply with a special design by the manufacturer
  4. Various power supplies
  5. Control board
  6. HMI and PLC control and monitoring systems
  7. Heaters and different temperature sensors
  8. Plasma electrodes
  9. Chassis, body and cover
  10. Cables and connections
  11. Ventilation system

Technical specifications

(380V (350V-410V), 50Hz (50Hz-60Hz

Power supply

 Liquid and gas Injected monomer type
Mass flow controller Injection system
As ordered Enclosure volume
Steel and aluminum Body material
 Aluminum Lid material
Optimal electrode structure appropriate for the desired application Plasma electrode
Adjustable between 45°C and 60°C Temperature
 Specially designed by the manufacturer Generator
 - PLC and HMI
- Control and monitoring of all system parameters and errors
- Manual and automatic modes
- Protective arrangements and internal interlocks
Control and monitoring system
